APIs

ALPHA

Otoroshi introduces a core entity: APIs. This feature marks a major step towards a more API Management-oriented experience by allowing users to manage their APIs as a whole, rather than configuring them route by route.

With the API entity, you can define reusable backends, declare multiple plugin flows that can be applied across different routes, manage consumers (plans) and subscriptions, and track the state of an API throughout its lifecycle.

This evolution unlocks powerful capabilities for building developer portals and brings Otoroshi closer to the expectations of a full-featured API Management platform.

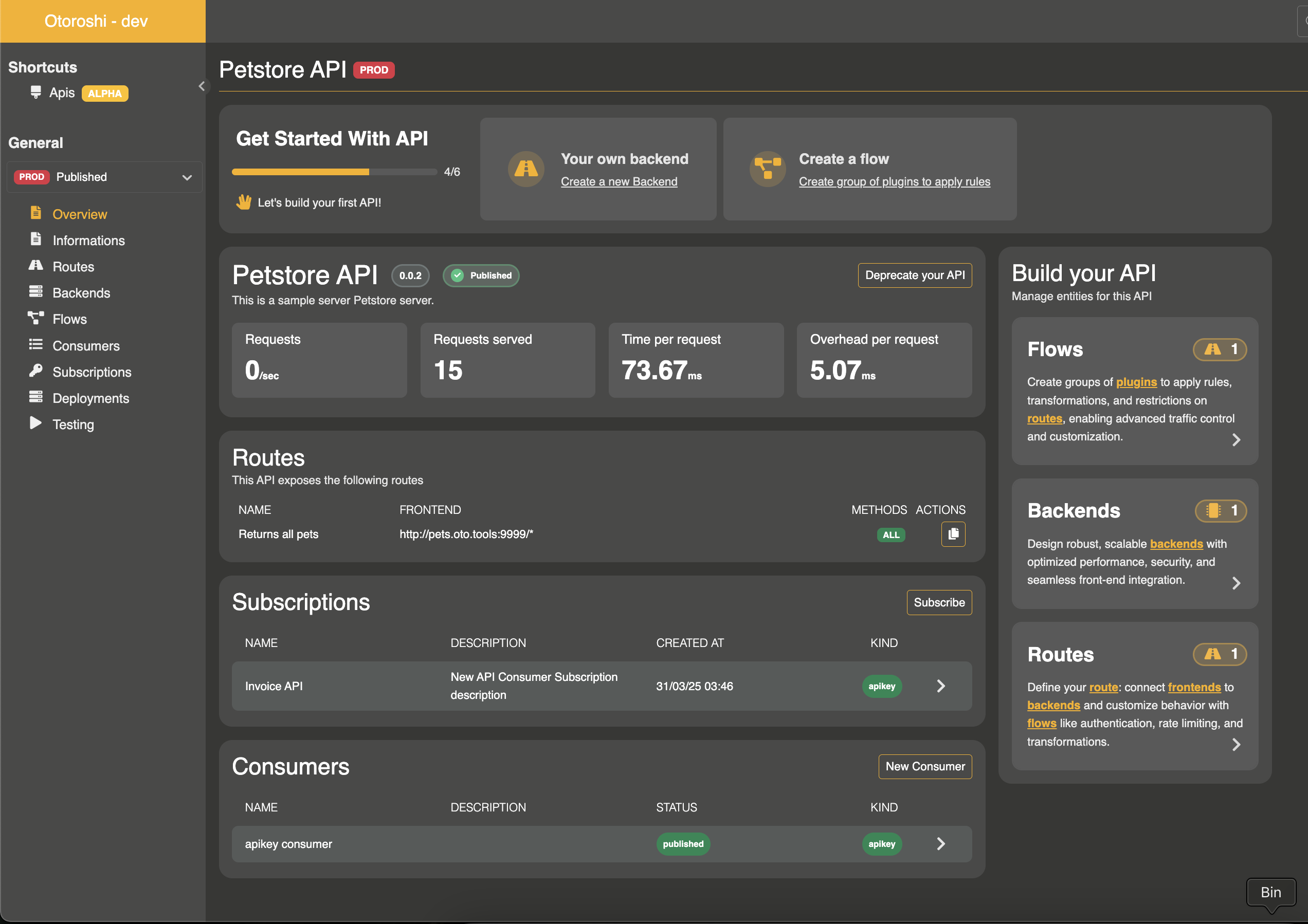

UI page

You can find all APIs here

API entity properties

An API is the top-level entity that groups together routes, backends, flows, documentation, plans, subscriptions, and clients.

Property	Type	Description
id	string	Unique identifier of the API
name	string	Display name of the API
description	string	Description of the API
domain	string	The domain on which the API is exposed (e.g., api.mydomain.com)
context_path	string	The base path prefix for all routes in this API (e.g., /api/v1)
version	string	Current version of the API (e.g., 1.0.0)
versions	array of string	List of all versions of this API
enabled	boolean	Whether the API is active and serving traffic
state	string	Lifecycle state: staging, published, deprecated, or removed
blueprint	string	API type: REST, GraphQL, gRPC, Http, or Websocket
debug_flow	boolean	Enable debug flow logging for all routes
capture	boolean	Enable request/response capture
export_reporting	boolean	Enable detailed reporting export
groups	array of string	Service groups this API belongs to
tags	array of string	Free tags for categorization
metadata	object	Free key/value metadata
routes	array of ApiRoute	The routes that compose this API
backends	array of ApiBackend	Backend definitions local to this API
flows	array of ApiFlows	Plugin flow chains
clients_backend_config	array of ApiBackendClient	Backend client configurations
documentation	ApiDocumentation	API documentation and developer portal configuration
deployments	array of ApiDeployment	Deployment history
clients	array of ApiClient	Registered API clients
testing	ApiTesting	Testing/draft mode configuration

API lifecycle

An API goes through the following lifecycle states:

staging --> published --> deprecated --> removed

State	Description
staging	The API is being designed. Only draft/testing routes are served (if testing is enabled).
published	The API is live and serving traffic. Plans can accept subscriptions.
deprecated	The API is still serving traffic but is marked for removal. No new subscriptions should be created.
removed	The API is deactivated. No traffic is served.

API blueprints

The blueprint field indicates the type of API being managed:

• REST: Standard RESTful HTTP APIs
• GraphQL: GraphQL APIs
• gRPC: gRPC services
• Http: Generic HTTP services
• Websocket: WebSocket-based APIs

Routes

An API is composed of multiple routes. Each route describes an HTTP endpoint exposed by the API (e.g., GET /users, POST /orders).

A route is composed of a frontend (describing the entry point: domain, path, methods, headers), a reference to a backend, and a reference to a flow (plugin chain).

Property	Type	Description
id	string	Unique identifier of the route
name	string	Display name of the route (optional)
enabled	boolean	Whether this route is active (default: true)
frontend	object	Frontend configuration (domains, paths, headers, methods, query, strip_path, exact)
backend	string	Reference to a backend ID (either a local API backend or a global stored backend)
flow_ref	string	Reference to a flow ID from this API's flows list

The route's frontend paths are automatically prefixed with the API's domain and context_path. For example, if the API has domain: api.example.com and context_path: /v1, and a route has a frontend path /users, the effective matching path will be api.example.com/v1/users.

A route can be enabled or disabled independently of the API's activation.

Route JSON example

{
  "id": "route_users_list",
  "enabled": true,
  "name": "List users",
  "frontend": {
    "domains": ["oto.tools/users"],
    "strip_path": true,
    "exact": false,
    "headers": {},
    "query": {},
    "methods": ["GET"]
  },
  "backend": "api_backend_abc123",
  "flow_ref": "default_plugin_chain"
}

Backends

A backend represents a list of target servers, along with its load balancing, health checks, and connection settings.

Backends can be defined locally within the API (in the backends array) or reference a global stored backend by its ID. This makes backends reusable across multiple APIs and routes.

Property	Type	Description
id	string	Unique identifier of the backend
name	string	Display name of the backend
backend	object	Full backend configuration (targets, root, rewrite, load balancing, health checks, TLS, etc.) following the NgBackend format
client	string	Reference to a backend client configuration ID from clients_backend_config

Backend JSON example

{
  "id": "api_backend_abc123",
  "name": "Users service backend",
  "backend": {
    "targets": [
      {
        "id": "target_1",
        "hostname": "users-service.internal",
        "port": 8080,
        "tls": false,
        "weight": 1
      }
    ],
    "root": "/",
    "rewrite": false,
    "load_balancing": { "type": "RoundRobin" }
  },
  "client": "default_backend_client"
}

Backend clients

Backend clients define the HTTP client configuration used when connecting to backend targets. They are referenced by backends using the client field.

Property	Type	Description
id	string	Unique identifier
name	string	Display name
client	object	Client configuration (retries, timeouts, circuit breaker, connection pool, etc.) following the NgClientConfig format

Backend client JSON example

{
  "id": "default_backend_client",
  "name": "Default client",
  "client": {
    "useCircuitBreaker": true,
    "retries": 1,
    "maxErrors": 20,
    "retryInitialDelay": 50,
    "backoffFactor": 2,
    "callAndStreamTimeout": 120000,
    "callTimeout": 30000,
    "idleTimeout": 60000,
    "globalTimeout": 30000,
    "connectionTimeout": 10000
  }
}

Flows

A flow is a named collection of plugins. Plugins are applied between the frontend and the backend (and vice versa) during request processing. Each route references a flow by ID.

Property	Type	Description
id	string	Unique identifier of the flow
name	string	Display name of the flow
plugins	object	Plugin chain following the NgPlugins format

A default flow named default_plugin_chain is automatically created with the OverrideHost plugin. You can add multiple flows to apply different plugin chains to different routes within the same API.

You can check the list of available plugins here.

Flow JSON example

{
  "id": "authenticated_flow",
  "name": "Authenticated flow",
  "plugins": {
    "slots": [
      {
        "plugin": "cp:otoroshi.next.plugins.OverrideHost",
        "enabled": true,
        "include": [],
        "exclude": [],
        "config": {}
      },
      {
        "plugin": "cp:otoroshi.next.plugins.ApikeyCalls",
        "enabled": true,
        "include": [],
        "exclude": [],
        "config": {}
      }
    ]
  }
}

Documentation

The API documentation subsystem powers developer portal experiences. It supports pages, navigation sidebars, search, banners, logos, and external content sources.

Property	Type	Description
enabled	boolean	Whether the documentation is active
source	object	Optional remote source to fetch documentation content (URL, headers, timeout, follow_redirects)
home	object	Home page resource
logo	object	Logo resource
references	array	List of external reference links (title, description, link, icon)
resources	array	List of documentation resources/pages
navigation	array	Sidebar navigation structure (categories and links)
redirections	array	URL redirections (from -> to)
footer	object	Footer resource (optional)
search	object	Search configuration (enabled: boolean)
banner	object	Banner resource (optional)
plans	array of ApiDocumentationPlan	Subscription plans with access modes and pricing
metadata	object	Documentation metadata
tags	array of string	Documentation tags

Documentation resources

Each resource in the documentation can contain:

Property	Type	Description
path	array of string	Path segments for URL routing
title	string	Page title
description	string	Page description
content_type	string	Content type (default: text/markdown)
text_content	string	Inline text content
json_content	object	Inline JSON content
base64_content	string	Base64-encoded binary content
url	string	Remote URL to fetch content from
site_page	boolean	Whether this resource is a standalone site page
transform	string	Content transformation to apply

Plans

Plans (also referred to as consumers in the UI) define security policies and pricing for API access. Each plan specifies an access mode that determines how clients authenticate when calling the API.

Property	Type	Description
id	string	Unique identifier of the plan
name	string	Display name of the plan
description	string	Description of the plan
status	string	Plan status: staging, published, deprecated, or closed
access_mode_configuration_type	string	Access mode type (see below)
access_mode_configuration	object	Access mode configuration (depends on type)
pricing	ApiPricing	Pricing configuration
tags	array of string	Tags
metadata	object	Metadata

Access modes

Otoroshi supports the following access modes for plans:

Mode	Description	Plugins applied
keyless	No authentication required. Open access.	None
apikey	Requires a valid API key. Configurable key patterns, restrictions, quotas, and rotation.	ApikeyCalls
jwt	Requires a valid JWT token with expected signature.	JwtUserExtractor
mtls	Requires a valid TLS client certificate matching configured subject/issuer patterns.	HasClientCertMatchingValidator
oauth2-local	OAuth2 client credentials flow with local token generation. Clients obtain a JWT to call other routes.	ApikeyCalls + client credentials endpoint
oauth2-remote	OAuth2 with remote token introspection via an external OIDC provider.	OIDCJwtVerifier

Apikey access mode configuration

Property	Type	Description
clientIdPattern	string	Regex pattern for generated client IDs
clientNamePattern	string	Regex pattern for generated client names
description	string	Description for generated API keys
authorizedEntities	array	Entities the API key is authorized on
enabled	boolean	Whether generated keys are enabled
readOnly	boolean	Whether generated keys are read-only
allowClientIdOnly	boolean	Allow authentication with client ID only (no secret)
constrainedServicesOnly	boolean	Restrict to constrained services only
restrictions	object	Access restrictions (allowed/forbidden paths and methods)
rotation	object	Key rotation configuration (enabled, rotationEvery, gracePeriod)
validUntil	number	Expiration timestamp (milliseconds)
tags	array of string	Tags for generated keys
metadata	object	Metadata for generated keys

Plan JSON example

{
  "id": "plan_free_tier",
  "name": "Free Tier",
  "description": "Free access with rate limiting",
  "status": "published",
  "access_mode_configuration_type": "apikey",
  "access_mode_configuration": {
    "enabled": true,
    "readOnly": false,
    "allowClientIdOnly": false,
    "constrainedServicesOnly": false,
    "restrictions": {
      "enabled": false
    },
    "rotation": {
      "enabled": false,
      "rotationEvery": 744,
      "gracePeriod": 168
    },
    "tags": [],
    "metadata": {}
  },
  "pricing": {
    "id": "pricing_free",
    "name": "Free",
    "enabled": true,
    "price": 0,
    "currency": "EUR",
    "params": {}
  },
  "tags": [],
  "metadata": {}
}

Pricing

Plans can include pricing information for monetization purposes.

Property	Type	Description
id	string	Unique identifier
name	string	Pricing plan name
enabled	boolean	Whether pricing is active
price	number	Price amount
currency	string	Currency code (e.g., EUR, USD)
params	object	Additional pricing parameters

Subscriptions

End-users (developers, portals, machines) can subscribe to published plans. A subscription contains information about the subscriber and references to the generated credentials (API key, certificate, JWT, etc.).

Property	Type	Description
id	string	Unique identifier
name	string	Display name
description	string	Description
enabled	boolean	Whether the subscription is active
api_ref	string	Reference to the parent API
plan_ref	string	Reference to the plan
owner_ref	string	Reference to the subscribing client
subscription_kind	string	Kind of subscription: apikey, mtls, keyless, oauth2-local, oauth2-remote, jwt
token_refs	array of string	References to generated credentials (API key IDs, certificate IDs, etc.)
dates	object	Lifecycle timestamps (see below)
tags	array of string	Tags
metadata	object	Metadata

Subscription dates

Property	Type	Description
created_at	number	Timestamp when subscription was created
processed_at	number	Timestamp when subscription was processed
started_at	number	Timestamp when subscription became active
paused_at	number	Timestamp when subscription was paused
ending_at	number	Timestamp when subscription will end
closed_at	number	Timestamp when subscription was closed

Subscription JSON example

{
  "id": "subscription_abc123",
  "name": "ACME Corp subscription",
  "description": "Free tier subscription for ACME Corp",
  "enabled": true,
  "api_ref": "api_users_service",
  "plan_ref": "plan_free_tier",
  "owner_ref": "client_acme",
  "subscription_kind": "apikey",
  "token_refs": ["apikey_xyz789"],
  "dates": {
    "created_at": 1710000000000,
    "processed_at": 1710000000000,
    "started_at": 1710000000000,
    "paused_at": 1710000000000,
    "ending_at": 1710000000000,
    "closed_at": 1710000000000
  },
  "tags": [],
  "metadata": {}
}

API clients

Clients represent the consumers that subscribe to your API. They are lightweight entities used to identify subscribers.

Property	Type	Description
id	string	Unique identifier
name	string	Client name
description	string	Description
tags	array of string	Tags
metadata	object	Metadata

Testing

The testing configuration allows you to test draft routes before publishing the API. When testing is enabled, Otoroshi generates special routes from the API's draft with a custom header requirement.

Property	Type	Description
enabled	boolean	Whether testing mode is active
headerKey	string	Header name required to access draft routes (default: X-OTOROSHI-TESTING)
headerValue	string	Expected header value (auto-generated UUID)

When testing is enabled:

1. Draft routes are built from the latest saved draft of the API
2. Each draft route requires the testing header (X-OTOROSHI-TESTING: <value>) to be accessible
3. This allows you to test changes without affecting published routes

Deployments

Deployments track the history of API publications. Each time an API is published (its state transitions from staging to published), a deployment record is created.

Property	Type	Description
id	string	Unique identifier
apiRef	string	Reference to the API
owner	string	Who performed the deployment
at	number	Timestamp of the deployment
apiDefinition	object	Snapshot of the API definition at deployment time
version	string	Version of the API at deployment time

OpenAPI import

Otoroshi can generate an API entity from an OpenAPI specification. When importing from an OpenAPI document:

• The API name, description, and version are extracted from the info section
• Server URLs are mapped to backend targets
• Each path and method combination is converted to an API route
• Both JSON and YAML formats are supported

Complete API JSON example

{
  "id": "api_users_service",
  "name": "Users Service",
  "description": "API for managing users",
  "domain": "api.example.com",
  "context_path": "/v1",
  "version": "1.0.0",
  "versions": ["1.0.0"],
  "enabled": true,
  "state": "published",
  "blueprint": "REST",
  "debug_flow": false,
  "capture": false,
  "export_reporting": false,
  "groups": ["default"],
  "tags": ["users", "core"],
  "metadata": {
    "team": "platform"
  },
  "backends": [
    {
      "id": "users_backend",
      "name": "Users backend",
      "backend": {
        "targets": [
          {
            "id": "target_1",
            "hostname": "users-service.internal",
            "port": 8080,
            "tls": false,
            "weight": 1
          }
        ],
        "root": "/",
        "rewrite": false,
        "load_balancing": { "type": "RoundRobin" }
      },
      "client": "default_backend_client"
    }
  ],
  "clients_backend_config": [
    {
      "id": "default_backend_client",
      "name": "Default client config",
      "client": {
        "useCircuitBreaker": true,
        "retries": 1,
        "callTimeout": 30000,
        "globalTimeout": 30000
      }
    }
  ],
  "flows": [
    {
      "id": "default_plugin_chain",
      "name": "Default flow",
      "plugins": {
        "slots": [
          {
            "plugin": "cp:otoroshi.next.plugins.OverrideHost",
            "enabled": true,
            "include": [],
            "exclude": [],
            "config": {}
          }
        ]
      }
    }
  ],
  "routes": [
    {
      "id": "route_list_users",
      "enabled": true,
      "name": "List users",
      "frontend": {
        "domains": ["oto.tools/users"],
        "strip_path": true,
        "exact": false,
        "headers": {},
        "query": {},
        "methods": ["GET"]
      },
      "backend": "users_backend",
      "flow_ref": "default_plugin_chain"
    },
    {
      "id": "route_create_user",
      "enabled": true,
      "name": "Create user",
      "frontend": {
        "domains": ["oto.tools/users"],
        "strip_path": true,
        "exact": false,
        "headers": {},
        "query": {},
        "methods": ["POST"]
      },
      "backend": "users_backend",
      "flow_ref": "default_plugin_chain"
    }
  ],
  "documentation": {
    "enabled": true,
    "plans": [
      {
        "id": "plan_free",
        "name": "Free Tier",
        "description": "Free access with API key",
        "status": "published",
        "access_mode_configuration_type": "apikey",
        "access_mode_configuration": {
          "enabled": true,
          "readOnly": false,
          "allowClientIdOnly": false,
          "tags": [],
          "metadata": {}
        },
        "pricing": {
          "id": "pricing_free",
          "name": "Free",
          "enabled": false,
          "price": 0,
          "currency": "EUR",
          "params": {}
        }
      }
    ],
    "home": {},
    "logo": {},
    "references": [],
    "resources": [],
    "navigation": [],
    "redirections": [],
    "search": { "enabled": true },
    "metadata": {},
    "tags": []
  },
  "clients": [
    {
      "id": "client_acme",
      "name": "ACME Corp",
      "description": "ACME Corp developer account",
      "tags": [],
      "metadata": {}
    }
  ],
  "testing": {
    "enabled": false,
    "headerKey": "X-OTOROSHI-TESTING",
    "headerValue": "secret-test-value"
  },
  "deployments": []
}

Admin API

The API entity can be managed through the admin API:

GET    /api/apis                     # List all APIs
POST   /api/apis                     # Create a new API
GET    /api/apis/:id                 # Get an API by ID
PUT    /api/apis/:id                 # Update an API
DELETE /api/apis/:id                 # Delete an API
PATCH  /api/apis/:id                 # Partially update an API

Subscriptions are managed at:

GET    /api/api-subscriptions        # List all subscriptions
POST   /api/api-subscriptions        # Create a subscription
GET    /api/api-subscriptions/:id    # Get a subscription
PUT    /api/api-subscriptions/:id    # Update a subscription
DELETE /api/api-subscriptions/:id    # Delete a subscription

Related entities

• Routes - The route entity that API routes are converted into at runtime
• Backends - Global reusable backends that can be referenced by API backends
• API Keys - Credentials generated when subscribing with apikey access mode
• Certificates - Certificates used with mtls access mode
• JWT Verifiers - Verifiers used with jwt and oauth2-remote access modes
