Custom HTTP Listeners

Starting from v16.18.0, Otoroshi supports custom HTTP listeners. This feature lets you run additional HTTP listeners on any port, with the protocols and TLS settings you want. Listeners can be defined statically from the configuration file or dynamically via the admin API.

Each listener runs an independent Netty server and is fully capable of routing traffic like the standard Otoroshi listener. Additionally, listeners can scope traffic to specific routes or plugins using the bound_listeners mechanism, enabling powerful multi-port deployment patterns.

Listener configuration

The configuration of an HTTP listener uses the following properties:

Property	Type	Default	Description
enabled	boolean	true	Whether the listener is active
exclusive	boolean	false	When true, the listener only serves routes explicitly bound to it. See exclusive listeners
tls	boolean	true	Enable TLS (HTTPS). When false, the listener uses plain HTTP
http1	boolean	true	Enable HTTP/1.1 protocol support
http2	boolean	true	Enable HTTP/2 protocol support (ALPN negotiation over TLS)
h2c	boolean	false	Enable HTTP/2 Cleartext (HTTP/2 without TLS, for internal networks)
http3	boolean	false	Enable HTTP/3 (QUIC). Requires tls: true. Runs on a separate UDP socket on the same port
port	number	7890	The port the listener binds to
exposedPort	number	same as port	The externally visible port (useful behind load balancers, proxies, or in containers)
host	string	0.0.0.0	The network interface the listener binds to. Use 0.0.0.0 for all interfaces or 127.0.0.1 for localhost only
accessLog	boolean	false	Enable access logging for this listener
clientAuth	string	None	mTLS client authentication mode: None, Want (optional), or Need (required)

JSON example

{
  "enabled": true,
  "exclusive": false,
  "tls": true,
  "http1": true,
  "http2": true,
  "h2c": false,
  "http3": false,
  "port": 7890,
  "exposedPort": 7890,
  "host": "0.0.0.0",
  "accessLog": false,
  "clientAuth": "None"
}

Exclusive listeners

An exclusive listener (marked with exclusive: true) only serves routes that are explicitly bound to it. Routes without a bound_listeners entry will never be served on an exclusive listener.

This is useful for:

• Private APIs: expose internal routes on a separate port that is only accessible from a private network
• Protocol isolation: run a dedicated listener for specific protocols (e.g., gRPC over H2)
• Security boundaries: enforce different TLS or mTLS settings per listener

When a listener is not exclusive (the default), it serves:

• All routes that are explicitly bound to it
• All routes that have no bound_listeners (i.e., routes available on any listener)

Static HTTP listeners

You can define HTTP listeners directly in the Otoroshi configuration file. They start at boot time as soon as the admin extensions are initialized.

Add listener configurations under otoroshi.admin-extensions.configurations.otoroshi_extensions_httplisteners.listeners:

otoroshi {
  admin-extensions {
    configurations {
      otoroshi_extensions_httplisteners {
        listeners = [
          {
            id = "internal-api"
            enabled = true
            exclusive = true
            tls = true
            http1 = true
            http2 = true
            port = 9443
            exposedPort = 9443
            host = "0.0.0.0"
            clientAuth = "Need"
          },
          {
            id = "public-h3"
            enabled = true
            exclusive = false
            tls = true
            http1 = true
            http2 = true
            http3 = true
            port = 8443
            exposedPort = 443
          }
        ]
      }
    }
  }
}

You can also provide the configuration as a JSON string using listeners_json, or set the OTOROSHI_HTTP_LISTENERS environment variable with a JSON array.

Static listeners must have an id field so that routes and plugins can reference them via bound_listeners.

Dynamic HTTP listeners

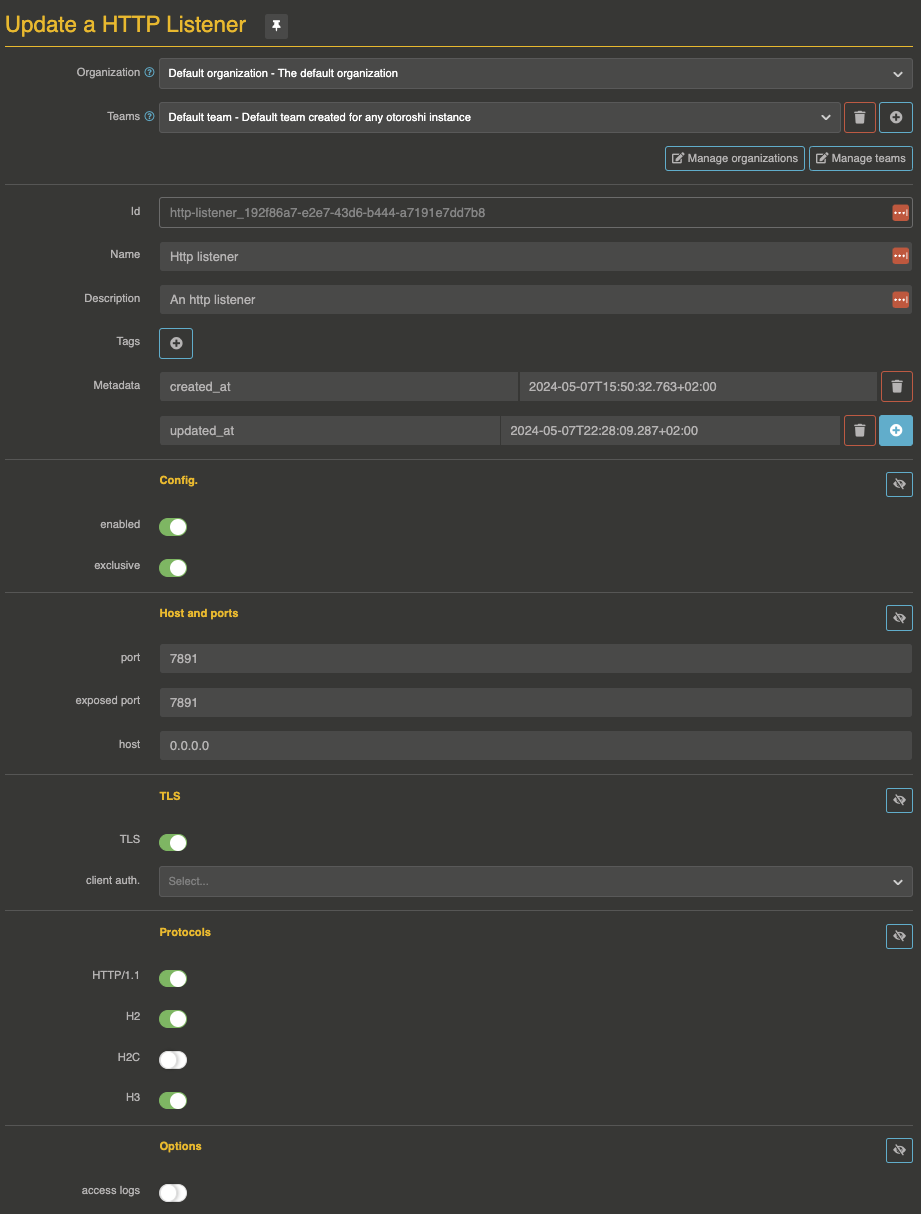

Dynamic listeners are managed through the admin API or the back-office UI. They are created, updated, and deleted at runtime without restarting Otoroshi.

Lifecycle

• Create: as soon as a new HttpListener entity is created, the corresponding Netty server starts
• Update: if the configuration changes, the listener is stopped and restarted with the new settings
• Disable: setting enabled: false stops the listener without deleting the entity
• Delete: deleting the entity stops the listener and removes it

Example: create an H2-only exclusive listener

curl -X POST 'http://otoroshi-api.oto.tools:8080/apis/http-listeners.proxy.otoroshi.io/v1/http-listeners' \
  -H 'Content-Type: application/json' \
  -u admin-api-apikey-id:admin-api-apikey-secret \
  -d '{
    "id": "private_h2_listener",
    "name": "Private H2 Listener",
    "description": "H2-only exclusive listener for internal gRPC services",
    "tags": ["internal"],
    "metadata": {},
    "config": {
      "enabled": true,
      "exclusive": true,
      "tls": true,
      "http1": false,
      "http2": true,
      "h2c": false,
      "http3": false,
      "port": 7892,
      "exposedPort": 7892,
      "host": "0.0.0.0",
      "accessLog": true,
      "clientAuth": "None"
    }
  }'

A few seconds later, a log entry will appear:

Example: disable a listener

curl -X PATCH 'http://otoroshi-api.oto.tools:8080/apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/private_h2_listener' \
  -H 'Content-Type: application/json' \
  -u admin-api-apikey-id:admin-api-apikey-secret \
  -d '[{"op": "replace", "path": "/config/enabled", "value": false}]'

Example: delete a listener

curl -X DELETE 'http://otoroshi-api.oto.tools:8080/apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/private_h2_listener' \
  -u admin-api-apikey-id:admin-api-apikey-secret

Bind a route to a specific HTTP listener

Routes have a bound_listeners property (array of listener IDs). When a route is bound to one or more listeners, it is only accessible on those listeners and no longer served on the standard listener.

For instance, the following route is only accessible from the listener with ID static-1. The standard HTTP listener will not route it:

{
  "id": "route_private_api",
  "name": "my private api",
  "description": "Only accessible on the static-1 listener",
  "enabled": true,
  "debug_flow": false,
  "export_reporting": false,
  "capture": false,
  "groups": ["default"],
  "bound_listeners": ["static-1"],
  "frontend": {
    "domains": ["myapi.oto.tools"],
    "strip_path": true,
    "exact": false,
    "headers": {},
    "query": {},
    "methods": []
  },
  "backend": {
    "targets": [
      {
        "id": "target_1",
        "hostname": "internal-service.local",
        "port": 8080,
        "tls": false,
        "weight": 1,
        "protocol": "HTTP/1.1"
      }
    ],
    "root": "",
    "rewrite": false,
    "load_balancing": { "type": "RoundRobin" }
  },
  "backend_ref": null,
  "plugins": []
}

Bind a plugin to a specific HTTP listener

For more granular control, individual plugins within a route can also be bound to specific listeners using the bound_listeners property on each plugin slot. This allows a route to be accessible on all listeners but apply certain plugins only on specific ones.

In the following example, the ApikeyCalls plugin is only applied when the request comes through the static-1 listener. The OverrideHost plugin runs on all listeners:

{
  "id": "route_selective_plugins",
  "name": "my api with selective auth",
  "description": "API key required only on the static-1 listener",
  "enabled": true,
  "debug_flow": false,
  "export_reporting": false,
  "capture": false,
  "groups": ["default"],
  "bound_listeners": [],
  "frontend": {
    "domains": ["myapi.oto.tools"],
    "strip_path": true,
    "exact": false,
    "headers": {},
    "query": {},
    "methods": []
  },
  "backend": {
    "targets": [
      {
        "id": "target_1",
        "hostname": "request.otoroshi.io",
        "port": 443,
        "tls": true,
        "weight": 1,
        "protocol": "HTTP/1.1"
      }
    ],
    "root": "",
    "rewrite": false,
    "load_balancing": { "type": "RoundRobin" }
  },
  "backend_ref": null,
  "plugins": [
    {
      "enabled": true,
      "debug": false,
      "plugin": "cp:otoroshi.next.plugins.ApikeyCalls",
      "include": [],
      "exclude": [],
      "config": {},
      "bound_listeners": ["static-1"],
      "plugin_index": {
        "validate_access": 0,
        "transform_request": 0,
        "match_route": 0
      }
    },
    {
      "enabled": true,
      "debug": false,
      "plugin": "cp:otoroshi.next.plugins.OverrideHost",
      "include": [],
      "exclude": [],
      "config": {},
      "bound_listeners": [],
      "plugin_index": {
        "transform_request": 1
      }
    }
  ]
}

Protocol support details

HTTP/1.1

Enabled by default. Standard HTTP/1.1 with keep-alive, chunked transfer encoding, and pipelining.

HTTP/2

Enabled by default over TLS via ALPN negotiation. Provides multiplexed streams, header compression (HPACK), and server push capabilities. When h2c is enabled, HTTP/2 cleartext is also available without TLS (useful for internal service-to-service communication).

HTTP/3

HTTP/3 runs over the QUIC protocol (UDP). It requires TLS to be enabled (tls: true). When activated, Otoroshi starts a separate UDP socket on the same port. HTTP/3 provides faster connection establishment (0-RTT), better handling of packet loss, and connection migration.

TLS and mTLS

Each listener manages its own TLS context with:

• Dynamic certificate selection: Otoroshi automatically selects the right certificate based on SNI (Server Name Indication)
• Independent mTLS settings: each listener can have different clientAuth settings (None, Want, Need)
• Shared cipher suites and TLS protocols: inherited from the global Otoroshi TLS configuration (otoroshi.ssl.cipherSuites and otoroshi.ssl.protocols)

Routing behavior summary

The following table summarizes how routes are matched depending on the listener type and the route's bound_listeners configuration:

Listener type	Route bound_listeners	Served?
Standard	empty	Yes
Standard	["listener-a"]	No
Non-exclusive custom	empty	Yes
Non-exclusive custom (listener-a)	["listener-a"]	Yes
Non-exclusive custom (listener-a)	["listener-b"]	No
Exclusive (listener-a)	empty	No
Exclusive (listener-a)	["listener-a"]	Yes
Exclusive (listener-a)	["listener-b"]	No

Use cases

• Internal/external separation: run an exclusive listener on a private port (e.g., 9443) for admin and internal APIs, while the standard listener serves public traffic
• Protocol specialization: dedicate a listener with http1: false for gRPC or HTTP/2-only services
• mTLS enforcement: run a listener with clientAuth: Need for partner integrations that require mutual TLS, without affecting other routes
• Multi-port deployment: serve admin UI, public API, and webhooks on different ports from the same Otoroshi instance
• Selective access logging: enable accessLog only on listeners that handle sensitive traffic
• HTTP/3 migration: run an HTTP/3 listener alongside HTTP/1.1+HTTP/2 for gradual client adoption

Admin API

GET    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners              # List all listeners
POST   /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners              # Create a listener
GET    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/:id          # Get a listener
PUT    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/:id          # Update a listener
PATCH  /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/:id          # Partially update a listener
DELETE /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/:id          # Delete a listener
GET    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_count       # Count listeners
GET    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_template    # Get a listener template
POST   /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_bulk        # Bulk create
PUT    /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_bulk        # Bulk update
PATCH  /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_bulk        # Bulk patch
DELETE /apis/http-listeners.proxy.otoroshi.io/v1/http-listeners/_bulk        # Bulk delete
