Workflows Editor

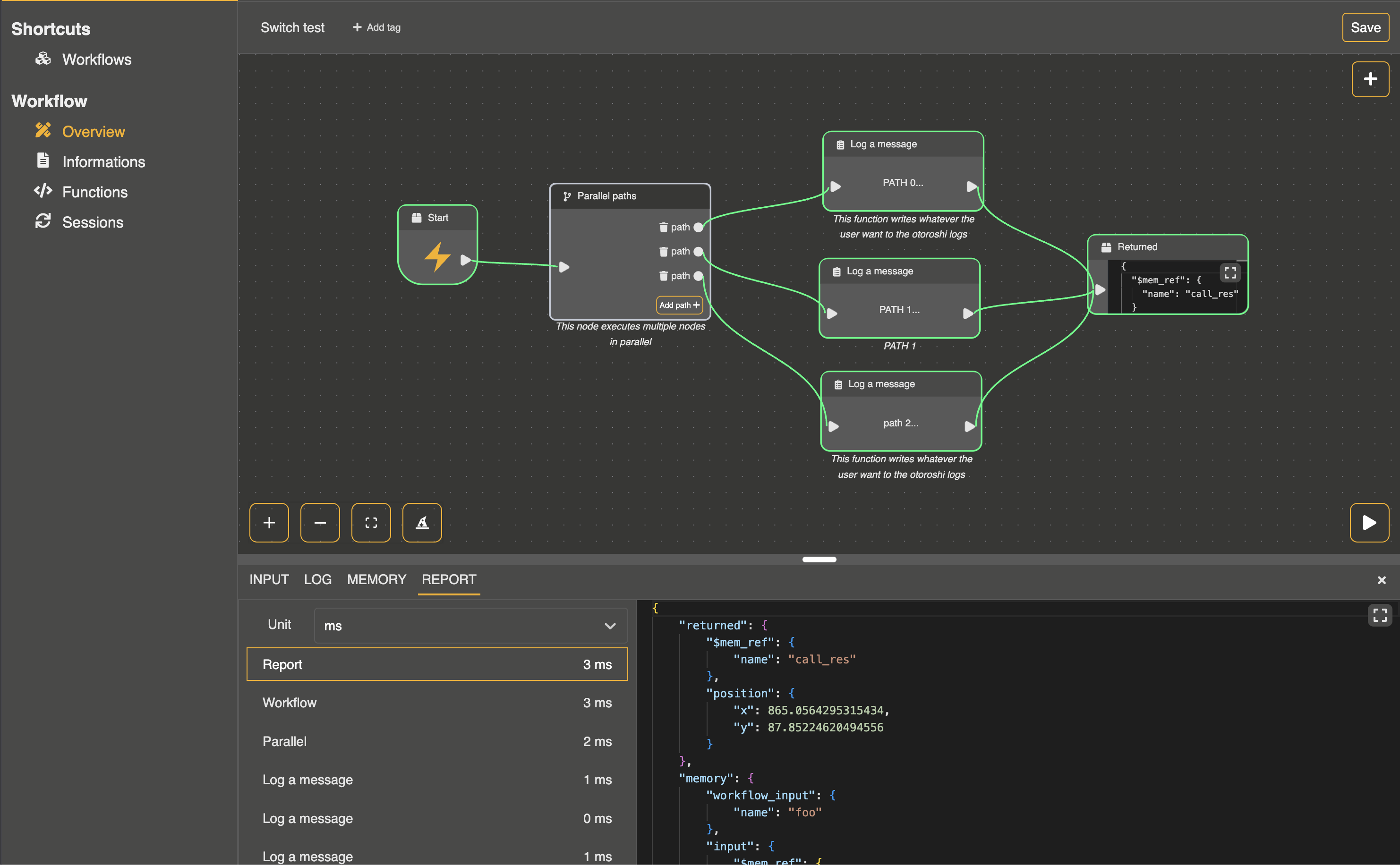

The Workflows Editor allows you to design, manage, and debug workflows visually. It is composed of a sidebar for navigation and a main panel for workflow interaction.

The sidebar contains four main tabs:

Overview​

The Overview tab displays the workflow designer where you can:

  • Create, move, and edit workflow nodes.
  • Drag and drop handles from an existing node to automatically create a new node linked to it.
  • Insert new nodes via the Insert Node button at the top-right corner of the main panel.
  • Run or debug the workflow using the Play button at the bottom-right.

Informations​

The Informations tab allows you to edit workflow metadata using forms. This includes workflow name, description, and other properties.

Functions​

In the Functions tab, you can create custom functions that can be reused in the main workflow. These functions are available for linking or calling from workflow nodes.

Sessions​

The Sessions tab displays all current running workflow sessions, which is especially useful for workflows triggered by cron jobs.

Main Panel​

The main panel is where the workflow is visualized and interacted with. Key features include:

Node Insertion​

Insert new nodes using the top-right Insert Node button or by dragging a handle from an existing node to create and link a new node automatically.

Running Workflows​

Use the Play button (bottom-right) to run the workflow.

Debugging​

Debug workflows by setting breakpoints on nodes:

  • Hover over a node and click the red Breakpoint button.
  • When debugging, the workflow executes step by step.

Debug View​

During debugging, a bottom panel displays:

  1. Input Panel: Enter custom data to test workflow execution.
  2. Log Panel: View workflow logs in real-time.
  3. Memory Panel: Inspect the workflow's internal memory at the current execution step.
  4. Final Report: Observe the dynamic results of the workflow execution step by step.
