Sunsetting Service Descriptors

Service Descriptors have been removed in Otoroshi v18.0.0. Routes are now the only way to configure HTTP proxying.

They had been deprecated for more than 4 years, since the rewrite of the proxy engine in v1.5.3 (Feb 14, 2022). v17.0.0 shipped the migration tooling, v18.0.0 removes the entity itself.

Nothing changes for your traffic. Under the hood, the proxy engine was already converting every Service Descriptor into a Route at runtime in order to reach your backends. What v18.0.0 removes is the Service Descriptor entity and its API, so that there is a single way to describe how a request is routed.

Upgrading: your Service Descriptors are migrated for you

There is nothing to do. The first time an Otoroshi v18 instance starts on a datastore that still contains Service Descriptors, a migration job runs — once per cluster, 10 seconds after startup. It first writes a backup of all your descriptors to ./service-descriptors-backup.json, then, for each descriptor:

1. converts it to a Route, keeping the same id
2. saves the Route and reads it back from the datastore
3. only then deletes the Service Descriptor

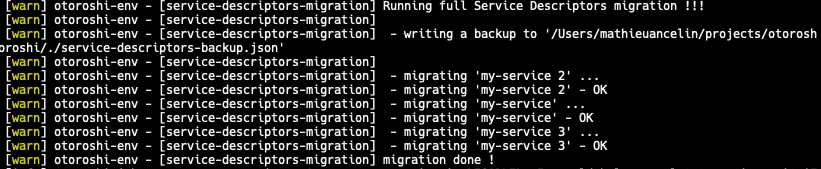

You will see it in the logs:

[warn] otoroshi-env - [service-descriptors-migration] Running full Service Descriptors migration !!!
[warn] otoroshi-env - [service-descriptors-migration]
[warn] otoroshi-env - [service-descriptors-migration]  - writing a backup to '/path/to/otoroshi/./service-descriptors-backup.json'
[warn] otoroshi-env - [service-descriptors-migration]
[warn] otoroshi-env - [service-descriptors-migration]  - migrating service descriptor 'my-service' ...
[warn] otoroshi-env - [service-descriptors-migration]  - migrating service descriptor 'my-service' - OK
[warn] otoroshi-env - [service-descriptors-migration]
[warn] otoroshi-env - [service-descriptors-migration] migration done: 3 migrated, 0 skipped, 0 failed (out of 3)

The job is a no-op when no Service Descriptor is left, so it is harmless on every subsequent restart.

Nothing is lost if a migration goes wrong

The job is built around a single invariant: for a given id there is always either a Route or a Service Descriptor in the datastore, never neither.

• If the backup file cannot be written, the migration is aborted before anything is touched. No backup, no migration.
• A descriptor is deleted only once its Route has been saved and read back successfully. If the conversion throws, if the write fails, or if the Route is not readable afterwards, the descriptor is left untouched — and restored if it had already been deleted.
• If a Route with the same id already exists and was not created by a previous run of this migration (it does not carry the otoroshi-core-legacy: true metadata), the descriptor is skipped rather than overwriting your Route. That conflict is yours to resolve.
• Anything skipped or failed stays in the datastore, and the migration runs again at the next startup. The summary line tells you where you stand:

[warn] otoroshi-env - [service-descriptors-migration] migration done: 2 migrated, 1 skipped, 0 failed (out of 3)
[warn] otoroshi-env - [service-descriptors-migration]
[warn] otoroshi-env - [service-descriptors-migration] 1 service descriptor(s) could not be migrated and are still in your datastore.
[warn] otoroshi-env - [service-descriptors-migration] a backup of all of them is available at '/path/to/otoroshi/./service-descriptors-backup.json'.
[warn] otoroshi-env - [service-descriptors-migration] the migration will run again at the next otoroshi startup.

In the meantime your traffic keeps flowing. When the proxy engine builds its routing table it still converts any leftover Service Descriptor into a Route in memory, exactly as it did in v17. A descriptor that could not be migrated is still served — it is simply not migrated yet. This runtime conversion is a safety net for the upgrade and will be dropped in a later version, so do not rely on it to keep descriptors alive.

warning

Keep service-descriptors-backup.json around until you have checked your routes. It is a plain JSON array of your Service Descriptors, exactly as they were before the migration. It is not a full Otoroshi export, so it cannot be re-imported as-is, but it lets you inspect or rebuild a descriptor by hand if a conversion did not do what you expected.

The otoroshi.service-descriptors-migration-job.enabled flag (OTOROSHI_SERVICE_DESCRIPTORS_MIGRATION_JOB_ENABLED) that gated this job in v17 has been dropped from the reference configuration and is no longer read. The migration always runs.

What keeps working

Because the conversion preserves the descriptor id, most of what referenced a Service Descriptor keeps working untouched:

• Api keys whose authorizedEntities contain service_<id> still authorize the migrated Route. You do not have to rewrite them to route_<id>, both forms are accepted.
• Analytics endpoints are unchanged and now serve routes: GET /api/services/:id/stats, /events, /status, /health, /response and GET /api/live/:id.
• Old exports still import. POST /api/otoroshi.json and POST /api/import still read the serviceDescriptors key of a v17 backup and convert each entry to a Route on the fly. New exports no longer contain that key.

Converting a descriptor without importing it

You probably still have v17 Service Descriptors lying around outside of the datastore — in a git repository, in a CI pipeline, in Kubernetes manifests. Two endpoints convert them to Routes without storing anything, so you can rewrite those files at your own pace.

POST /api/routes/_from_service_descriptor takes the JSON of a Service Descriptor and answers with the JSON of the matching Route:

curl -X POST -H 'Content-Type: application/json' \
  "http://otoroshi-api.oto.tools:8080/api/routes/_from_service_descriptor" \
  -d @my-service-descriptor.json

It also accepts a JSON array and answers with an array of Routes, which is the quick way to convert the whole serviceDescriptors block of an old export — or your service-descriptors-backup.json — in one call. The body is merged over the default descriptor template, so a partial descriptor works too. Array entries that are not JSON objects are ignored, and a body that cannot be converted gets you a 400 instead of an error page. The same handler is exposed as POST /apis/proxy.otoroshi.io/v1/routes/_from_service_descriptor.

For manifests, POST /api/new/resources now understands the proxy.otoroshi.io/ServiceDescriptor kind (and the bare ServiceDescriptor) and answers with a proxy.otoroshi.io/Route resource:

curl -X POST -H 'Content-Type: application/json' \
  "http://otoroshi-api.oto.tools:8080/api/new/resources" \
  -d '{"content": {"kind": "proxy.otoroshi.io/ServiceDescriptor", "name": "my-service", "...": "..."}}'

{
  "created": {
    "kind": "proxy.otoroshi.io/Route",
    "resource": { "...": "..." }
  }
}

content accepts a JSON object, a JSON array, a YAML document or a multi-document YAML string (--- separated), so this is the path to translate your v17 ServiceDescriptor CRDs into Route CRDs before applying them.

What has been removed

Admin API

Removed	Use instead
GET/POST /api/services, GET/PUT/PATCH/DELETE /api/services/:id	/api/routes, /api/routes/:id
/api/services/_bulk	/api/routes/_bulk
/api/services/_template, /api/new/service	/api/routes/_template
/api/services/:id/apikeys, /api/services/:id/apikeys/:clientId (and /quotas)	/api/routes/:id/apikeys, /api/routes/:id/apikeys/:clientId
/api/services/:id/targets	the backend.targets field of the Route
/api/services/:id/template	/api/error-templates
/api/services/:id/canary	the canary plugin on the Route
/api/services/:id/route (the v17 migration endpoint)	nothing — migration is automatic. To convert a descriptor you hold as JSON, POST /api/routes/_from_service_descriptor
/api/lines, /api/lines/:line/services	nothing — env is now a env:<name> tag on the Route
/apis/proxy.otoroshi.io/v1/service-descriptors	/apis/proxy.otoroshi.io/v1/routes

Global config

The Use circuit breakers toggle of the Danger zone is gone. It only ever existed to switch circuit breakers off globally for Service Descriptors, and it is now always on — circuit breaking is configured per Route, in the client settings of its backend. The useCircuitBreakers field is still present in the global config JSON, always true, so v17 configurations still import.

Admin UI

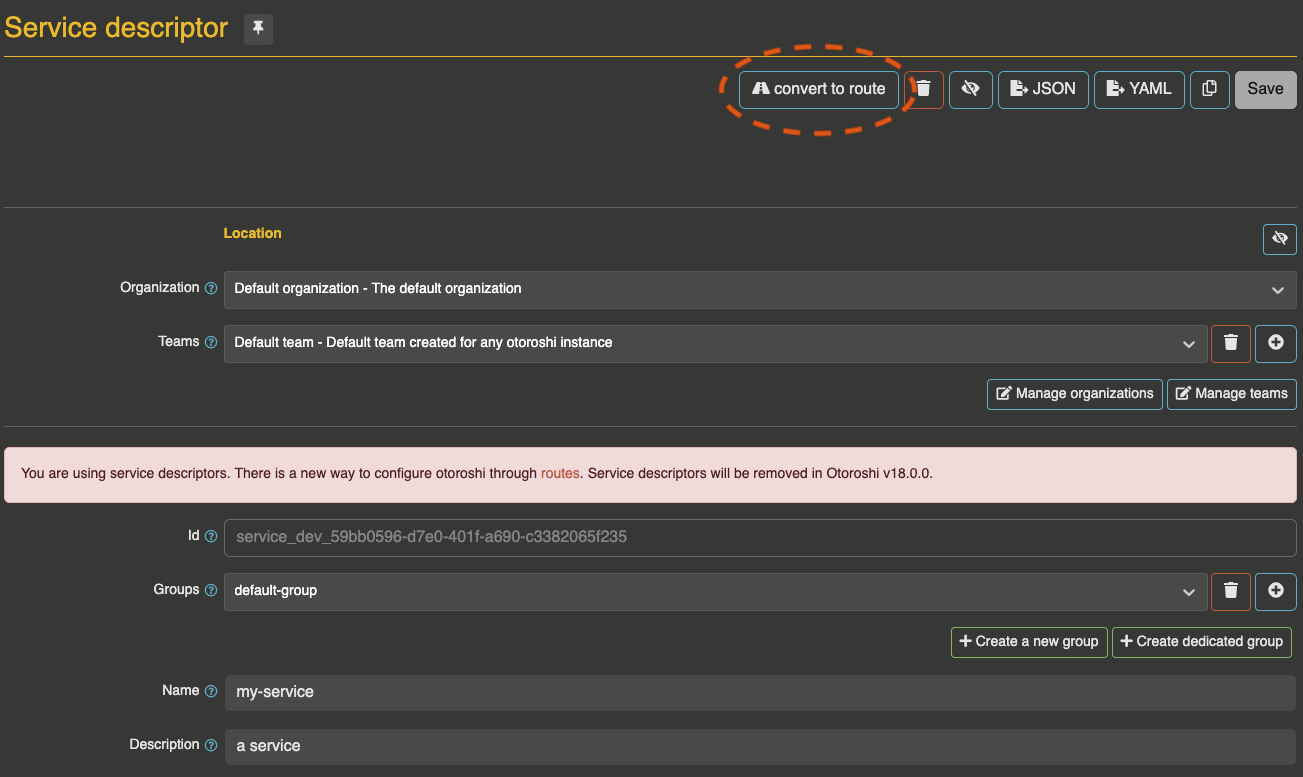

The Services pages, the per-service documentation tab, the Clever Cloud apps page that created a service from a Clever app, and the Convert a service descriptor button of the route designer are gone. Everything happens in the route designer now.

Kubernetes

• The ServiceDescriptor CRD no longer exists. Use Route CRDs. Remember to apply the updated CRD manifests when upgrading.
• The Ingress controller always creates Routes. The ingress.otoroshi.io/is-route=true annotation, which was the opt-in in v17, is no longer read and can be removed from your ingresses.

If a conversion is not what you expected

A Route produced by the migration carries the otoroshi-core-legacy: true and otoroshi-core-env: <env> metadata, and an env:<env> tag, so you can find them all easily:

curl -X GET -H 'Content-Type: application/json' \
  "http://otoroshi-api.oto.tools:8080/api/routes" | jq '[.[] | select(.metadata."otoroshi-core-legacy" == "true") | .name]'

From there you can edit them like any other Route. If something looks wrong, compare it with the original descriptor in service-descriptors-backup.json and open an issue.
